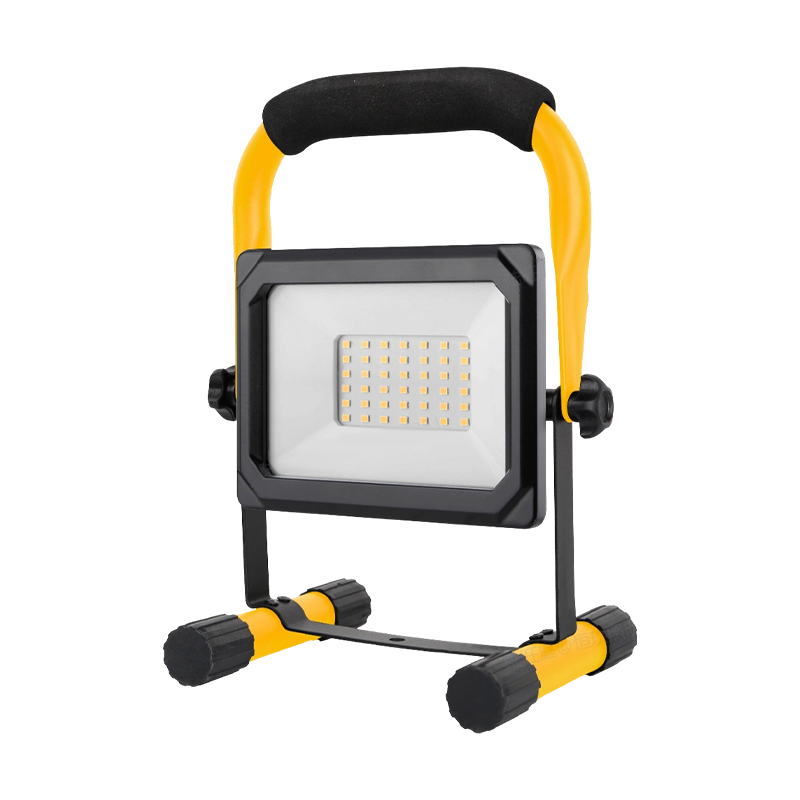

TBA-D7 Classic LED Work Light with Integrated On/Off Switch

TBA-D7 在经典款结构基础上,把开关做成一体式设计,操作手感更直接,日常使用中开关灯的动作更简便顺手,尤其适合需要频繁开关灯具的作业场景,比如反复进出仓库检查、间歇性维修等。

灯体延续压铸铝外壳、钢化玻璃面板和 ABS 框架的组合,兼具坚固耐用和良好的散热表现;作为家庭维修、DIY、工具房和车库照明的补充光源,TBA-D7 能够长期稳定运行,减少更换和维护频率。

功率区间 10–100 W,6500K 色温、最高 110 lm/W 的光效表现,让作业区域获得清晰明亮的照明效果,即使是夜间户外临时作业也能保持良好可见度。防护等级方面,IP65 灯体、IP44 插头与 IK06 抗冲击共同构成较为全面的防护体系,配合 25,000 小时使用寿命和 2 年质保,使这款灯具适合长期、高频次使用的场景。

Building on the classic design, the TBA-D7 integrates the on/off switch directly into the body for a more intuitive feel, making it quicker and easier to switch the light on and off — a real benefit for jobs that involve turning the light on and off repeatedly, such as intermittent warehouse checks or stop-start repair work.

The construction carries over the die-cast aluminium housing, tempered-glass front and ABS frame, combining sturdiness with effective heat dissipation. As a supplementary light source for household repairs, DIY, tool sheds and garages, the TBA-D7 is built to run reliably over the long term, reducing how often it needs replacing or servicing.

Power output ranges 10–100 W, and the 6500K colour temperature with up to 110 lm/W efficacy delivers clear, bright illumination across the work area, maintaining good visibility even for temporary nighttime outdoor tasks. On the protection side, IP65 on the lamp, IP44 on the plug and an IK06 impact rating together form a fairly comprehensive defence, and combined with a 25,000-hour lifespan and 2-year warranty, make this light suitable for long-term, high-frequency use.

Overview

1. 10–100 W, AC 220–240 V.
2. 6500K LED, up to 110 lm/W.
3. Die-cast aluminium, tempered glass & ABS frame.
4. IP65 lamp, IP44 plug, IK06; integrated on/off switch, 25,000 h, 2-year warranty.

Are these lights manufactured by you? Are you a factory or a trading company?
Can you do OEM or ODM?
What is your main market?
What certification do you have?
Is it possible to print my LOGO on led light product?
What about the energy saving effect and life of LED lightings?
Can I have a sample order for led lights?
What is the Payment?
What about the lead time?
Is there an MoQ limit if buy led lights?
How to ship? And how long does it take to transport?
How to deal with the faulty?
Non PIR PIR Plug-in PIR

Non PIR

Power(W) Voltage 1 single CCT DF Lumen Output(lm) Dimensions(mm)
TBA10SX-D7 10W 230V/50HZ 3000K/4000K/6500K >0.7 950 131*91*174mm
TBA20SX-D7 20W 230V/50HZ 3000K/4000K/6500K >0.9 1900 145*91*185mm
TBA30SX-D7 30W 230V/50HZ 3000K/4000K/6500K >0.9 3000 175*91*204mm
TBA50SX-D7 50W 230V/50HZ 3000K/4000K/6500K >0.9 5000 215*91*236mm
TBA70SX-D7 70W 230V/50HZ 3000K/4000K/6500K >0.7 7000 261*91*273mm
TBA100SX-D7 100W 230V/50HZ 3000K/4000K/6500K >0.7 10000 296*113*301mm
