LED Work Lights
Home / LED Series / LED Work Lights / TBA-D5 Classic LED Work Light
  • TBA-D5 Classic LED Work Light
  • TBA-D5 Classic LED Work Light
LED Work Lights

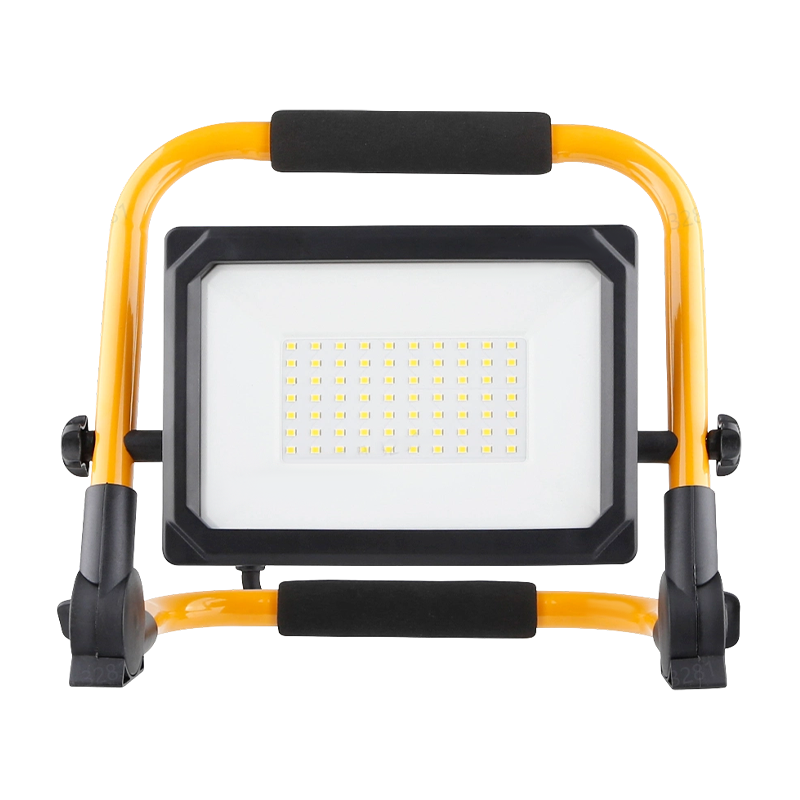

TBA-D5 Classic LED Work Light

The TBA-D5 is the classic model in the range — a straightforward design built to be a dependable light source for everyday maintenance and DIY work. The die-cast aluminium body and tempered-glass front shield the internal LED source from dust and minor impacts, while the ABS frame adds resilience against drops and knocks.

An independent on/off switch is fitted, so the light can be switched off without unplugging it each time, making day-to-day handling simpler. Its compact size and moderate weight make it easy to keep in a toolbox, on a garage shelf or beside a workbench for quick access, positioning it as a cost-effective choice for household repairs, everyday DIY and light-duty jobs.

On the specification side, the TBA-D5 offers 10–100 W power options and a 6500K light source rated up to 110 lm/W, giving clear, sharp lighting that helps with distinguishing part colours and fine detail. IP65 lamp protection, an IP44-rated plug and an IK06 impact rating keep it working reliably in the slightly damp or dusty conditions common to garages and tool sheds, while a 25,000-hour lifespan and 2-year warranty help keep long-term costs down.

Overview

1. 10–100 W, AC 220–240 V.
2. 6500K LED, up to 110 lm/W.
3. Die-cast aluminium, tempered glass & ABS frame.
4. IP65 lamp, IP44 plug, IK06; with on/off switch, 25,000 h, 2-year warranty.

Are these lights manufactured by you? Are you a factory or a trading company?
Can you do OEM or ODM?
What is your main market?
What certification do you have?
Is it possible to print my LOGO on led light product?
What about the energy saving effect and life of LED lightings?
Can I have a sample order for led lights?
What is the Payment?
What about the lead time?
Is there an MoQ limit if buy led lights?
How to ship? And how long does it take to transport?
How to deal with the faulty?
Non PIR PIR Plug-in PIR

Non PIR

Power(W) Voltage 1 single CCT DF Lumen Output(lm) Dimensions(mm)
TBA10SX-D5 10 230V/50HZ 3000K/4000K/6500K >0.9 950 172*49*179
TBA20SX-D5 20 230V/50HZ 3000K/4000K/6500K >0.9 1900 185*49*184
TBA30SX-D5 30 230V/50HZ 3000K/4000K/6500K >0.9 3000 215*53*199
TBA50SX-D5 50 230V/50HZ 3000K/4000K/6500K >0.7 5000 255*52*229
TBA70SX-D5 70 230V/50HZ 3000K/4000K/6500K >0.7 7000 307*52*254
TBA100SX-D5 100 230V/50HZ 3000K/4000K/6500K >0.9 10000 342*52*274
