LED Solar Light
Home / LED Series / LED Solar Light / FST-P1 Motion-Sensor Oval Solar Bulkhead
  • FST-P1 Motion-Sensor Oval Solar Bulkhead
  • FST-P1 Motion-Sensor Oval Solar Bulkhead
LED Solar Light

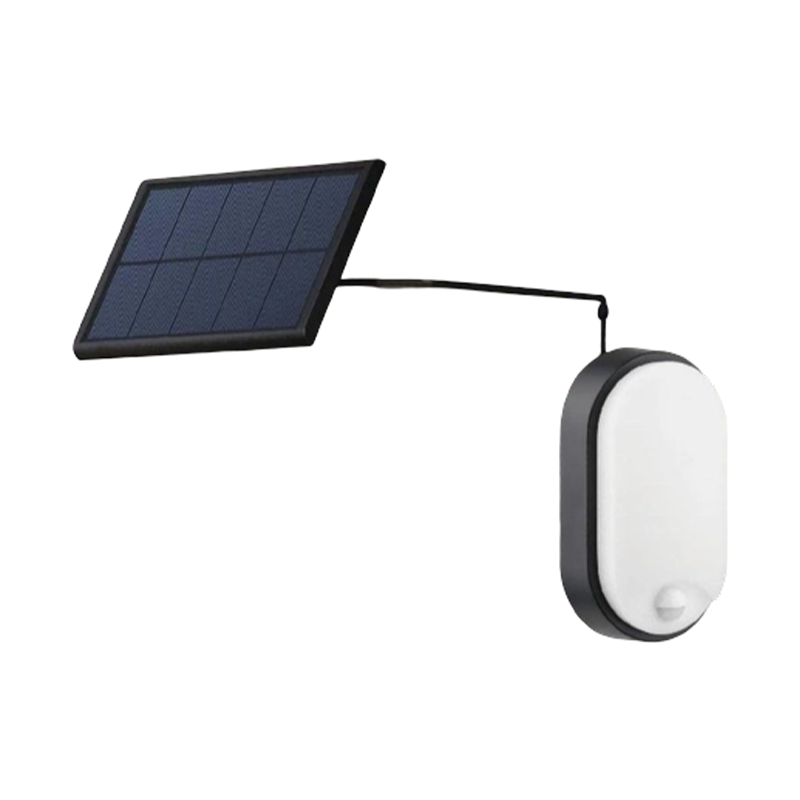

FST-P1 Motion-Sensor Oval Solar Bulkhead

The FST-P1 oval solar bulkhead has a built-in PIR sensor that raises brightness automatically as someone approaches, serving both as illumination and a visible safety cue — a model within the range built specifically for security-lighting applications.

Delay time and ambient-light trigger threshold adjust externally, letting installers set the light to match actual project needs on site rather than relying on fixed factory defaults. In a busy public walkway, for example, the delay can be shortened for faster response, while a quieter private garden can use a longer delay to avoid the light triggering repeatedly from small animals passing by — balancing practicality with energy efficiency.

The single-CCT design keeps specification simple, which particularly suits project buyers sourcing a consistent look across bulk installations. Compared with a selectable-CCT version, the single-colour-temperature model has a simpler build and more straightforward cost control, suiting projects with no specific colour-temperature requirement that prioritise sensor function and overall protection instead.

From a security-lighting standpoint, the core value of this fixture lies in its "low power at rest, bright when triggered" behaviour: it stays at a low standby brightness or switches off entirely during quiet periods, then rises to the set brightness only when motion is detected — providing the necessary nighttime lighting cue while significantly extending battery life by avoiding continuous high-brightness operation.

Overview

1. 800/1200/1600 lm options with a single CCT.
2. 3.3 W solar panel; 3.7 V 2000/3000/4000 mAh Li-ion battery.
3. PIR sensor: 100° detection angle and 6–10 m range.
4. IP65, IK08; 8–10 h charging and up to 18 h of night light operation.

Are these lights manufactured by you? Are you a factory or a trading company?
Can you do OEM or ODM?
What is your main market?
What certification do you have?
Is it possible to print my LOGO on led light product?
What about the energy saving effect and life of LED lightings?
Can I have a sample order for led lights?
What is the Payment?
What about the lead time?
Is there an MoQ limit if buy led lights?
How to ship? And how long does it take to transport?
How to deal with the faulty?
Non PIR PIR Plug-in PIR

Non PIR

Model No. Power(W) Voltage CCT Lumen Output(lm) Dimensions(mm)
FST5Y-B83S 5w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 800 120*61*210mm
FST8Y-B83S 8w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 1200 120*61*210mm
FST10Y-B83S 10w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 1500 120*61*210mm
FST5S-B81S 5w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 800 120*61*210mm
FST8Y-B81S 8w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 1200 120*61*210mm
FST10Y-B81S 10w AC 220-240V 3000K/4000K/6500K 3CCT adjustable 1500 120*61*210mm
