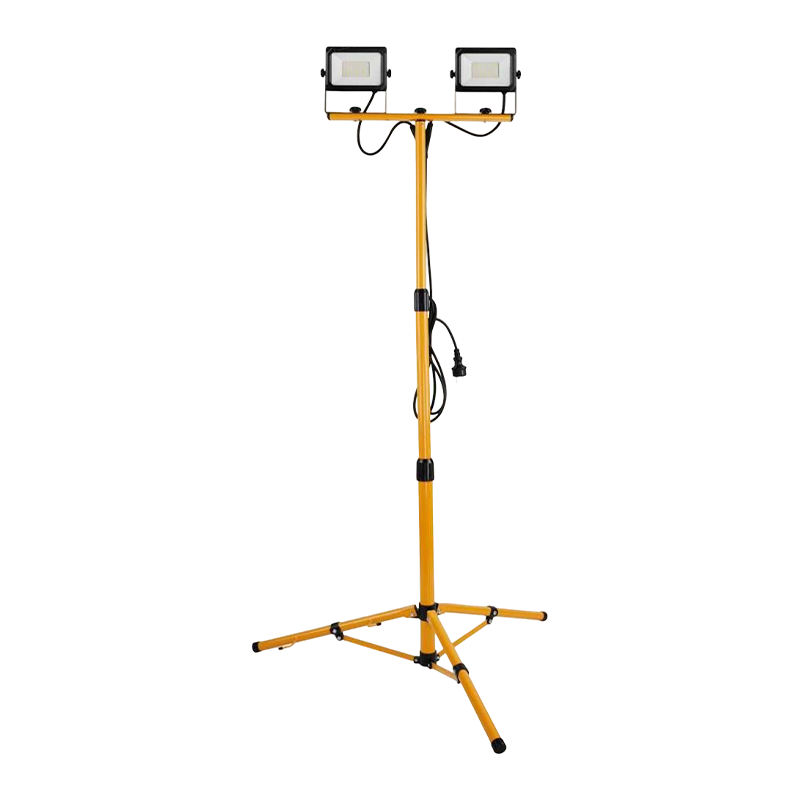

TBA-ES2 Dual-Head Adjustable Tripod LED Work Light

The TBA-ES2 twin-head tripod work light is built for large job sites where a single beam falls short of the coverage needed. Each head rotates and tilts independently, so one unit can illuminate an area that would otherwise require two separate single-head fixtures, cutting down on the number of devices and power outlets needed on site.

The height-adjustable tripod stand lets crews raise or lower the beam angle to match scaffolding, uneven ground, or changing work levels throughout a shift. The wide-set tripod base provides a stable footprint even on slightly irregular surfaces, and with the two heads splitting the coverage area, shadowed blind spots within the work zone are noticeably reduced compared with a single-head configuration.

A built-in switch controls the light directly at the fixture, so the plug stays seated in the outlet rather than being pulled and reinserted throughout the day. This matters most on jobs where the light gets turned on and off repeatedly — overnight security rounds, intermittent inspection work, or stop-start repair tasks — where a dedicated switch reduces wear on both the plug and the socket, and lowers the risk of a loose connection developing over time.

Construction-wise, the die-cast aluminium housing dissipates heat efficiently, keeping brightness consistent through extended continuous operation rather than dimming as the unit warms up. The tempered-glass front on each head resists flying debris and minor impacts common on active job sites, while the ABS frame around the body absorbs shock from drops and knocks during transport or handling. Together, the three-material construction keeps the fixture structurally sound through the kind of rough treatment that shortens the life of lighter-duty work lights.

Setup takes only a few minutes: the tripod legs unfold and lock in place without tools, and the twin-head bracket can be repositioned by hand to whatever angle the task calls for. Crews moving between multiple stations on the same site tend to prefer this fixture over separate single-head lights simply because one carry, one setup and one power connection cover twice the ground — a small efficiency gain that adds up across a long shift or a multi-day project.

Overview

1. 10–100 W, AC 220–240 V.
2. 6500K LED, up to 110 lm/W.
3. Adjustable tripod; single or twin-head options.
4. IP65 lamp, IK06; with on/off switch and 2-year warranty.

Are these lights manufactured by you? Are you a factory or a trading company?
Can you do OEM or ODM?
What is your main market?
What certification do you have?
Is it possible to print my LOGO on led light product?
What about the energy saving effect and life of LED lightings?
Can I have a sample order for led lights?
What is the Payment?
What about the lead time?
Is there an MoQ limit if buy led lights?
How to ship? And how long does it take to transport?
How to deal with the faulty?
Non PIR PIR Plug-in PIR

Non PIR

Power(W) Voltage 1 single CCT DF Lumen Output(lm) Dimensions(mm)
TBA10SX-ES2 2*10W 230V/50HZ 3000K/4000K/6500K >0.9 2*950 870*870*1615mm
TBA20SX-ES2 2*20W 230V/50HZ 3000K/4000K/6500K >0.7 2*1900 870*870*1630mm
TBA30SX-ES2 2*30W 230V/50HZ 3000K/4000K/6500K >0.7 2*3000 870*870*1650mm
TBA50SX-ES2 2*50W 230V/50HZ 3000K/4000K/6500K >0.9 2*5000 870*870*1675mm
TBA70SX-ES2 2*70W 230V/50HZ 3000K/4000K/6500K >0.9 2*7000 1100*1100*1725mm
TBA100SX-ES2 2*100W 230V/50HZ 3000K/4000K/6500K >0.9 2*10000 1100*1100*1775mm
