Flood light

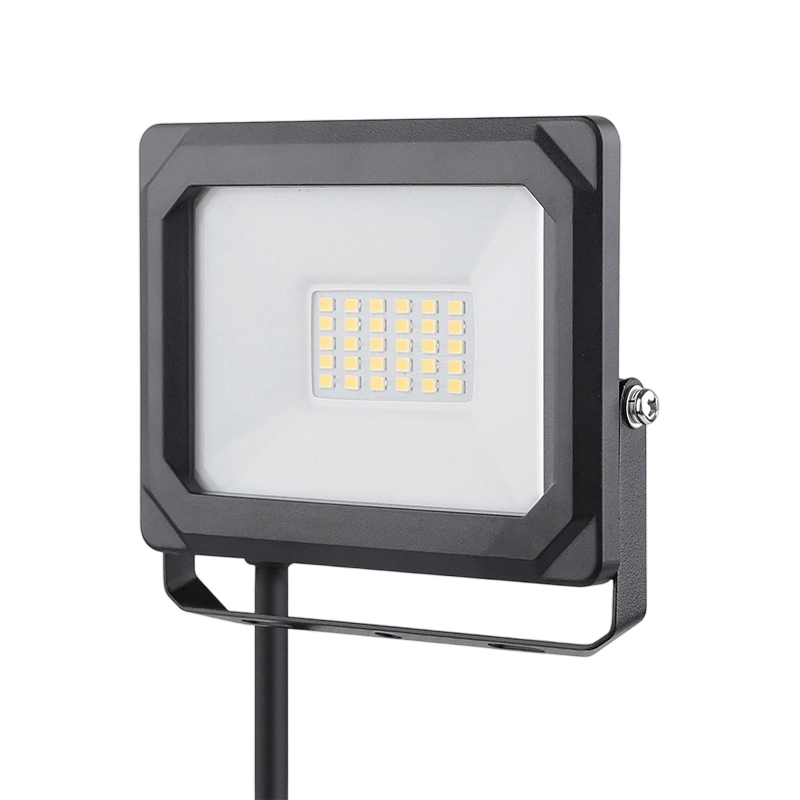

TBA Glass Smart Plug-in Floodlight

TBA Glass Smart Plug-in Floodlight is a lighting device that combines durability with intelligent control functions, designed to cope with changing installation environments and inventory management needs. The product adopts a die-cast aluminum shell with tempered glass, suitable for use in a variety of outdoor and semi-outdoor locations. Its sturdy structure can operate stably in humid or dusty environments, bringing a reliable lighting experience.

The lamp has a built-in high-performance LED light source with high luminous efficiency and long service life, saving later maintenance costs. Its pre-wired rubber cable design reduces installation steps and improves installation efficiency, making large-scale deployment more convenient, helping importers optimize inventory configuration and reduce warehousing and turnover pressure. The product is equipped with an intelligent infrared sensing module with flexible parameter adjustment capabilities. Users can adjust the sensing time, illumination threshold, and sensing distance according to the usage scenario to meet the light control needs of different spaces and improve energy efficiency. Through the plug-in structure design, the floodlight does not require complicated disassembly and assembly during replacement and maintenance, which improves the convenience of use.

Overview

1- IP65 Corrosion-resistant die cast aluminium housing with tempered glass
2- Pre-wired 0.15m H05RN-F rubber cable
3- High efficiency 100lm/W long-life LED chips
4- PIR version with Time & Lux & Distance adjustable

Are these lights manufactured by you? Are you a factory or a trading company?
Can you do OEM or ODM?
What is your main market?
What certification do you have?
Is it possible to print my LOGO on led light product?
What about the energy saving effect and life of LED lightings?
Can I have a sample order for led lights?
What is the Payment?
What about the lead time?
Is there an MoQ limit if buy led lights?
How to ship? And how long does it take to transport?
How to deal with the faulty?
Non PIR PIR Plug-in PIR

Non PIR

Model No. Power(W) Voltage CCT DF Lumen Output(lm) Dimensions(mm)
TBA10SX 10 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 1000 103*29*091
TBA20SX 20 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 2000 113*29*101
TBA30SX 30 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 3000 144*29*116
TBA50SX 50 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 5000 185*29*144
TBA70SX 70 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 7000 234*29*184
TBA100SX 100 AC 220-240V / 85-130V 3000K/4000K/5700K/6000K 0.7 10000 268*29*205
Code Lumen Output (Im) Colour Temp (CCT) (K) Max Wattage (W) Efficacy (Lm/W) Add to Spec
EFLD10B40P 1050 4000 10 105 +
EFLD20B40P 2100 4000 20 105 +
EFLD30B40P 3150 4000 30 105 +
EFLD50B40P 5250 4000 50 105 +
